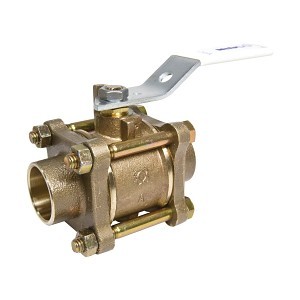

3-Piece Ball Valve, 1-1/4 in, C, Full Port, Bronze Ball, Bronze
PartNIBS595YLF114
MFGNJ9302B
Description
NIBCO® Ball Valve, 3-Piece, Series: S-595-Y-LF, 1-1/4 in Nominal, Solder, 600 psi, 300 deg F, Full Port, Media: Water, 1-1/4 in Orifice, Standard Lever Actuator, Silicon Bronze Ball, 3.91 in Inlet to Outlet Length, 2-3/4 in Top to Inlet Center, Silicon Bronze Body, Silicon Bronze Stem Trim, FKM/PTFE/RPTFE, Domestic
Notice
Price/Availability Accessible On Login- USE NIBCO APPROVED WATER SOLUBLE FLUX
- Valve Pressure Rating 600 psi/41.4 bar Non-Shock Cold Working Pressure
- Repairable Design
- Blow-Out proof stem
- White Handle for Easy Lead-Free Identification
- NIBCO Double Oval Lead-Free Body Marking
- Dezincification Resistant
- PTFE Seat Ring, Thrust Washer/EPDM Boss Seal O-Ring
- Safety-Vent for Compressed Air Lines
- Locking Lever Handle
- Solder end connections
The NIBCO® 3-Piece Lead free ball valve is constructed of Lead free dezincification-resistant (DZR) high quality performance bronze silicon alloy per ASTM specifications. The valve features solder ends for easy installation. The valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. The NIBCO® ball valve provides ease of operation with quarter-turn (90 deg) open to close. The Lead free ball valve provides bubble-tight shut-off at 600 psi. Please refer to NIBCO® technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO® INC. 5-year 125% limited warranty.
| Nominal Size | 1-1/4 in |
| End Style | C |
| Port Type | Full |
| Construction | 3-Piece |
| Material | Bronze |
| Ball Material | Bronze |
| Actuator Type | Standard Lever |
| Body Material | Cast Copper Silicon Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 3.91 in |
| Media | Water |
| Orifice Size | 1-1/4 in |
| Pressure Rating | 600 psi |
| Series | S-595-Y-LF |
| Softgoods Material | FKM/PTFE/RPTFE |
| Temperature Rating | 300 deg F |
| Top to Inlet Center | 2-3/4 in |
| Trim Material | Silicon Bronze Stem |
| Brand | NIBCO® |
| Package Width | 3.5 in |
| Package Height | 4.562 in |
| UNSPSC | 40141607 |
| Package Length | 9.75 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923319852 |
| Manufacturer Part Number | NJ9302B |
5 Years Limited
ASTM B584 Alloy C87850 Body|ASTM B283 Alloy C69300 Ball|ASTM B371 Alloy C69300 Stem|MSS SP-110|NSF/ANSI 61-8/372|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Human Consumption, Including Residential and Commercial Construction
