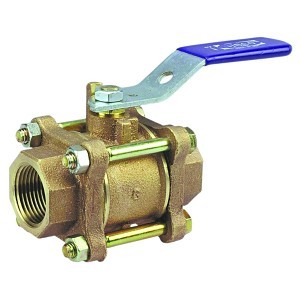

3-Piece Ball Valve, 1/2 in, FNPT, Full Port, Stainless Steel Ball, Bronze
PartNIBT595Y66X12
MFGNL99H66
Description
NIBCO® Ball Valve, 3-Piece, Series: T-595-Y-66, 1/2 in Nominal, FNPT, 600 psi, 400 deg F, Full Port, Media: Air/Gas/Water, 1/2 in Orifice, Locking Lever Handle Actuator, 316 Stainless Steel Ball, 2-1/2 in Inlet to Outlet Length, 1.69 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Trim, PTFE/Fluorocarbon Rubber, Domestic
Notice
Price/Availability Accessible On Login- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Blow-Out proof stem
- Vented ball
- Dezincification resistant
- Standard lever handle, optional NIB-SEAL
- Maximum temperature rating 400 deg F
- Threaded end connections
The NIBCO® bronze ball valve provides bubble-tight shut-off at 600 psi. The 3-Piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The valve is repairable in-line. The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The PTFE seat ring and stainless steel ball and stem exhibits high chemical resistance properties and is recommended for many high pressure applications. The 3-Piece valve features threaded ends for easy installation. Options include NIB-SEAL® insulated handle that eliminates condensate. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® INC. 5-year 125% limited warranty.
| Nominal Size | 1/2 in |
| End Style | FNPT |
| Port Type | Full |
| Construction | 3-Piece |
| Material | Bronze |
| Ball Material | Stainless Steel |
| Actuator Type | Standard Lever |
| Body Material | Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 2-1/2 in |
| Media | Air/Gas/Water |
| Orifice Size | 1/2 in |
| Pressure Rating | 600 psi |
| Series | T-595-Y-66 |
| Softgoods Material | PTFE/Fluorocarbon Rubber |
| Temperature Rating | 400 deg F |
| Top to Inlet Center | 1.69 in |
| Trim Material | Stainless Steel Stem |
| Brand | NIBCO® |
| Package Width | 2.937 in |
| Package Height | 2.875 in |
| UNSPSC | 40141607 |
| Package Length | 6.125 in |
| Country of Origin | US |
| Manufacturer | NIBCO Inc. |
| UPC | 039923689658 |
| Manufacturer Part Number | NL99H66 |
5 Years Limited
MSS SP-110|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Hot/Cold Water, Numerous Gas Applications, Compressed Air, Vacuum Service, Condenser and Chilled Water
