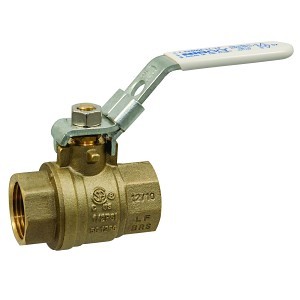

2-Piece Ball Valve, 1 in, FNPT, Full Port, Plated Brass Ball, Brass
PartNIBTFP600ALFLL1
MFGNL998XLA
Description
NIBCO® Ball Valve, 2-Piece, Series: T-FP-600A-LF-LL, 1 in Nominal, FNPT, 600 psi, Full Port, Media: Gas/Water, 0.94 in Orifice, Locking Lever Handle Actuator, Polished Chrome Brass Ball, 2.76 in Inlet to Outlet Length, 4.53 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, PTFE, Import
Price/Availability Accessible On Login
- Blow-Out proof stem
- Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2 in to 4 in)
- Threaded end connections
The NIBCO® Lead free copper alloy ball valve with threaded end connections provides bubble-tight shut-off. The valve's PTFE seats and Lead free ball exhibit high corrosion resistance properties. The valve is ideal for hot/cold water and gas applications. The NIBCO® Lead free copper alloy ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-Piece valve features threaded end connections for easy installation. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO® INC. 2-year limited warranty.
| Nominal Size | 1 in |
| End Style | FNPT |
| Port Type | Full |
| Construction | 2-Piece |
| Material | Brass |
| Ball Material | Plated Brass |
| Actuator Type | Locking Lever |
| Body Material | Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.76 in |
| Media | Gas/Water |
| Orifice Size | 0.94 in |
| Pressure Rating | 600 psi |
| Series | T-FP-600A-LF-LL |
| Softgoods Material | PTFE |
| Top to Inlet Center | 4.53 in |
| Trim Material | Brass Stem and PTFE Ball Seat |
| Brand | NIBCO® |
| UNSPSC | 40141607 |
| Country of Origin | CN |
| Manufacturer | NIBCO Inc. |
| UPC | 039923347640 |
| Manufacturer Part Number | NL998XLA |
2 Years Limited
CSA/ANSI Z21.15/CSA 9.1|CSA/ASME B16.44/B16.33|CSA CAN/CGA 3.16|CSA CGA CR91-002|FM 1140/175 wwp|UL 1477 (YQNZ)|UL 842 (YRBX)|UL 842 (YRPV)|UL 842 (MHKZ)|UL 125 (YSDT)|UL Subject 258 (VQGU)|IAPMO Listed to NSF/ANSI 61-8/372|UPC-IGC-157|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
