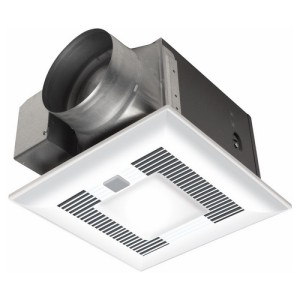

WhisperGreen® Select™ Bathroom Fan/Light, 110/130/150 cfm, 120 VAC, 1 ph
PartPANFV1115VKL1
MFGFV-11-15VKL1
Description
Panasonic WhisperGreen Select™ Ventilation Fan, Bath, 110/130/150 cfm, 6 in Duct Dia, 120 VAC, 0.16 A, 60 Hz, 16.5 W, 0.3 Sones, 13 in Grille Length, 13 in Grille Width, Polypropylene Grille, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 7-3/8 in Housing Height, Galvanized Steel Housing, Ceiling Mount, Humidity Sensing: Optional, Motion Sensing: Optional, White, Import
Notice
Price/Availability Accessible On Login- DISCONTINUED ITEM *ALL SALES FINAL* NO RETURNS
- Customizable, all-in-one fan and fan/LED light combinations
- Pick-A-Flow™ speed selector- one fan, you choose the cfm
- Unique plug 'N Play™ modules provide up to three value added features
- Revolutionary DC motor with SmartFlow™ technology ensures optimal cfm output
- Replaceable, GU24 base LED lamps provide warm, energy efficient illumination
- Flex-Z Fast™ bracket provides flexible, fast and easy installation
- Integrated dual 4 or 6 in duct adaptor (up to 110 cfm models)
- Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
- Fits in 2 x 8 in construction
- Protected by UL class 2 power unit
- Includes a motion sensor cap for use as a cover when the motion sensor plug 'N Play™ module has not been selected
- 1016 Ohm-cm volume resistivity
- Single connection
- Round duct adapter
WhisperGreen Select™ is revolutionizing the ventilation fan industry with a new set of features that enable customization and easier installation. This all-purpose Indoor Air Quality (IAQ) solution gives you more than 250 possible configurations; through multiple flow rates, optional Plug 'N Play™ modules and installation flexibility. WhisperGreen Select™ is your total solution for indoor air quality, code compliance, green certification and healthy indoor environments.
| Type | Fan/Light |
| Air Flow Rate | 110/130/150 cfm |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Series | WhisperGreen® Select™ |
| Amperage Rating | 0.16 A |
| Color | White |
| Current/Amps | 0.16 A |
| Domestic/Import | Import |
| Duct Diameter | 6 in |
| Flow Rate | 110/130/150 cfm |
| Frequency Rating | 60 Hz |
| Grille Length | 13 in |
| Grille Material | Polypropylene |
| Grille Width | 13 in |
| Housing Height | 7-3/8 in |
| Housing Length | 10-1/4 in |
| Housing Material | Galvanized Steel |
| Housing Width | 10-1/4 in |
| Humidity Sensing | Optional |
| Motion Sensing | Optional |
| Mounting Type | Ceiling |
| Power Rating | 16.5 W |
| Sones | 0.3 |
| Wattage Consumption | 16.5 W |
| Brand | Panasonic |
| Package Width | 14 in |
| Package Height | 12 in |
| UNSPSC | 39111543 |
| Alternate Part Number 1 | 12356707 |
| Package Length | 17 in |
| Country of Origin | CN |
| Manufacturer | Panasonic |
| UPC | 885170179981 |
| Manufacturer Part Number | FV-11-15VKL1 |
Flex-Z Fast™ Installation Bracket and 6 in Duct Adapter and Motion Sensor Cap
3 Years All Parts, 6 Years DC Motor
ASHRAE 62.2|CALGreen Compliant|ENERGY STAR® Certified|LEED Certified|UL Listed|Washington VIAQ|PROP65: Ventilation Fan products sold by Panasonic Eco Solutions North America (PESNA) do not contain Proposition 65 listed chemicals at a level, or in a manner, that require Proposition 65 Consumer Product Exposure Warnings
Single Family, Manufactured Housing Multi-Family Hospitality, Assisted Living, Student Housing Renovation and Remodeling
