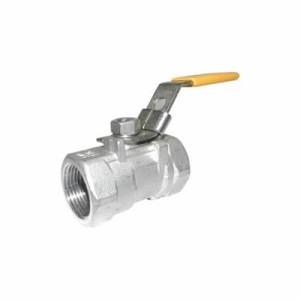

1-Piece Ball Valve, 1/4 in, FNPT, Standard Port, Stainless Steel Ball, 316/316L Stainless Steel
PartRED455014
MFG4550 1/4
Description
RWV® Ball Valve, 1-Piece, Series: 4550, 1/4 in Nominal, Thread End Style, 1000 lb WOG/100 lb WSP Pressure, 360 deg F, Reduced Port, Stainless Steel Ball, 316 Stainless Steel Body, RPTFE Seat and Stainless Steel Stem Trim, PTFE Softgoods
Price/Availability Accessible On Login
- Blow-out proof stem
- Locking handle
- PTFE packing washer gasket
| Nominal Size | 1/4 in |
| End Style | FNPT |
| Port Type | Standard |
| Construction | 1-Piece |
| Material | 316/316L Stainless Steel |
| Ball Material | Stainless Steel |
| Body Material | 316 Stainless Steel |
| Pressure Rating | 1000 psi |
| Series | 4550 |
| Softgoods Material | PTFE |
| Temperature Rating | 360 deg F |
| Trim Material | RPTFE Seat and Stainless Steel Stem |
| Brand | RWV® |
| UNSPSC | 40141607 |
| Manufacturer | Red-White Valve |
| UPC | 670779455020 |
| Manufacturer Part Number | 4550 1/4 |
MSS-SP-110|ANSI B16.34|A276 304 Handle|A276 316 Ball/Stem and A316 CF8M Body
Commercial and Industrial Applications
Price/Availability Accessible On Login
RWV®1-Piece Ball Valve, 1/4 in, FNPT, Standard Port, Stainless Steel Ball, 316/316L Stainless Steel
