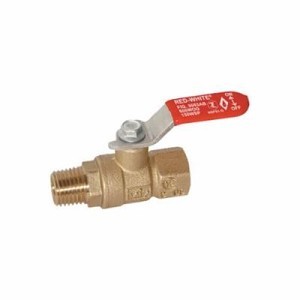

2-Piece Ball Valve, 1/4 in, FNPT x MNPT, Full Port, Plated Brass Ball, Brass
PartRED5083AB
MFG5083AB 1/4
Description
RWV® Mini Ball Valve, 2-Piece, Series: 5083AB, 1/4 in Nominal, MNPT x FNPT End Style, 600 lb WOG/150 lb WSP Pressure, 15 to 160 deg F, Full Port, 0.31 in Orifice, Chrome Plated Low Lead Brass Ball, 1.89 in Inlet to Outlet Length, 1.09 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, FPM Softgoods
Price/Availability Accessible On Login
Documentation
- Blow-out proof stem
- Fpm O-ring/packing
| Nominal Size | 1/4 in |
| End Style | FNPT x MNPT |
| Port Type | Full |
| Construction | 2-Piece |
| Material | Brass |
| Ball Material | Plated Brass |
| Body Material | Brass |
| Inlet to Outlet Length | 1.89 in |
| Orifice Size | 0.31 in |
| Pressure Rating | 600 psi |
| Series | 5083AB |
| Softgoods Material | FPM |
| Temperature Rating | 15 to 160 deg F |
| Top to Inlet Center | 1.09 in |
| Trim Material | Low Lead Brass Stem and PTFE Seat |
| Brand | RWV® |
| UNSPSC | 40141607 |
| Manufacturer | Red-White Valve |
| UPC | 670779433011 |
| Manufacturer Part Number | 5083AB 1/4 |
ANSI Z21.15|CGA-9.1|AB1953|ANSI/NSF 61<5|NSF-372|CW510L Body/Ball/Stem|Meet BAA Requirement|CSA Certified 1/2 psi for Natural Gas|Propane and LPF Service
