Upright Fire Sprinkler Head, Standard Response, 1/2 in, 5.6 K, 286 deg F, White

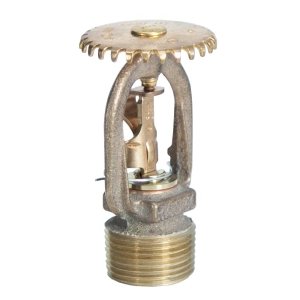

The Reliable® model G automatic sprinkler utilizes the center strut solder in compression principle of construction. The fusible alloy is captured in the cylinder of the solder capsule by a stainless steel ball. When the fusible alloy melts, the ball moves into the cylinder allowing the cylinder to fall away from the sprinkler. When this happens, the lever is released to spring-free from the sprinkler so that all of the operating parts clear from the waterway allowing the deflector to distribute the discharging water. Except for the parts in the cylinder as mentioned above, the sprinkler components are made from copper based alloys for maximum corrosion protection. lead plated, wax coated or wax over lead plated sprinklers are available for specially severe environments. Chrome plated sprinklers are available for decorative purposes. All sprinklers are individually hydrostatically tested. All sprinklers are identified as to their fusing point by markings that appear on several of the operating parts and by an identifying color that appears on the frame.

UL Listed|cULus Listed|Factory Mutual Research Corporation|Loss Prevention Council|Pleniere Assemblee|VdS Schadenverh?tung GmbH|N.Y.C. BS&A No. 587-75-SA/MEA 258-93-E|NFPA 25|EC 1438-CPD-0053|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Wet, Dry, Deluge and Pre-Action Fixed Fire Protection System Applications
