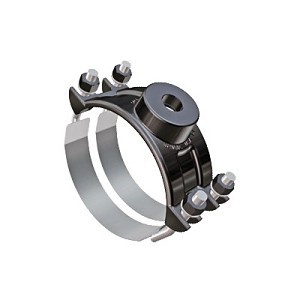

202S Saddle, 6 in, Thread, 6.63 to 7.6 in OD Hole Dia, Ductile Iron Clamp, Shop Coated

RMC202S7602IP MFG #: 285-076072
Romac® Service Saddle, Series: 202S, 6 in Nominal, Thread, Up to 350 psi, 5/8 in UNC Bolt, 304 Stainless Steel Bolt, Ductile Iron Clamp, Nitrile Butadiene Rubber Gasket, 9.5 in L x 4.7 in W, Shop Coated, Domestic
  • Alternate Part Number 1
  • Brand
  • Includes
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Standards / Approvals
  • Warranty
  • Web
  • Package Weight
  • Country of Origin
202S-7.60 X 2 IP
Romac®
(2) 304 Stainless Steel Straps, Nitrile Butadiene Rubber Gasket, 5/8 in UNC Rolled Thread 304 Stainless Steel Bolts and Heavy Hex Nuts, 304 Stainless Steel Washers
SADDLE SERV 6 IN UPTO 350 PSI DI DOM THD
Shop coat ductile iron service saddle with two stainless steel straps|Gasket is made from nitrile butadiene rubber (NBR) compounded for water and sewer service and a tolerance of petroleum products|Straps are 2 in wide to spread out clamping forces on the pipe and passivated for corrosion resistance|18-8 heavy gauge 304 stainless steel bolt and flat washer|2 in IP tap|6.63 to 7.6 in OD sleeve|Recommended for use on steel, cast iron, asbestos cement, plastic and other types of pipe
Romac Industries
285-076072
ASTM A536 Grade 65-45-12 Body, ASTM A240 Strap, ASTM A194 Bolts and Nuts, ASTM MBC 610 Gasket, ANSI/AWWA C800
2 Years
Pipe Saddles
9 lb
United States of America
