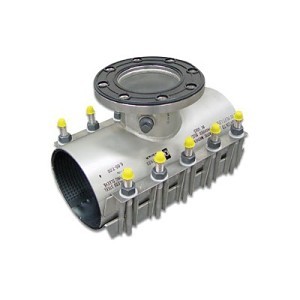

SST™ Tap Sleeve Pipe Saddle, 4 in, 4 in Flanged
PartRMCSST5004SSFLG
MFG100-0500041
Description
Romac® Tapping Sleeve, Series: SST™, 4 in Nominal, Flange, 250 psi, 1/2 in UNC Bolt, 304 Stainless Steel Bolt, 304/304L Stainless Steel Clamp, Styrene Butadiene Rubber Gasket, 12 in L, Domestic
Price/Availability Accessible On Login
- Full circumferential seal, all stainless steel tapping sleeve with side lifter bars
- Recommended for use on steel, cast iron, asbestos cement, plastic and other types of pipe
- For 4 in flanged outlets, the recommended cutter size is 3-1/2 in
- 4 in flange
- 4.7 to 5 in OD sleeve
| Type | Tap Sleeve |
| Nominal Size | 4 in |
| Connection Type | 4 in Flanged |
| Series | SST™ |
| Bolt Material | 304 Stainless Steel |
| Bolt Size | 1/2 in UNC in |
| Clamp Material | 304/304L Stainless Steel |
| Dimensions | 12 in L |
| Domestic/Import | Domestic |
| Gasket Material | Styrene Butadiene Rubber |
| Hole Diameter | 4.7 to 5 in OD |
| Pressure Rating | 250 psi |
| Brand | Romac® |
| UNSPSC | 40175307 |
| Alternate Part Number 1 | SST-5.00 X 4 SS |
| Country of Origin | US |
| Manufacturer | Romac Industries |
| Manufacturer Part Number | 100-0500041 |
3/4 in NPT 304 Stainless Steel Test Plug, Lubricating Washers, Gasket, 1/2 in 304 Stainless Steel Bolts and Nuts
2 Years
ASTM A240 Body/Flange/Washer|ASTM A193 Bolt|ASTM A194 Nut|ASTM D2000 MAA 610 Gasket|AWWA C223 and MSS SP-124
Used to make a branch outlet from a main supply line with extra protection for lines subjected to excessive beam loads
