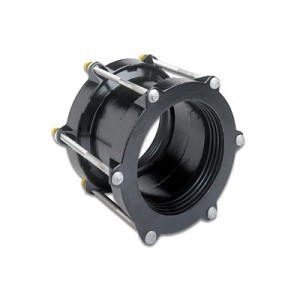

XR501 Extended Range Coupling, 10 in Nominal, Ductile Iron, Shop Coated, Domestic

RMCXR50110 MFG #: 207-12151215800
Romac® Extended Range Coupling, Series: XR501, Fitting/Connector Type: Coupling, 10 in Nominal, 260 psi, Ductile Iron, Shop Coated, Domestic/Import: Domestic
  • Alternate Part Number 1
  • Application
  • Brand
  • Country of Origin
  • Includes
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Package Weight
  • Standards / Approvals
  • Warranty
  • Web
XR501-12.15 X 12.15 X 8
Used to Flexibly Couple Pipe of Widely Different Diameter (A Range of IPS Through Class 200 A/C Pipe)
Romac®
United States of America
8 in L Ductile Iron Center Ring, Ductile Iron End Ring, (2) 10-1/2 to 12.15 in Styrene Butadiene Rubber Gasket, 5/8 in UNC Rolled Thread Standard Trackhead Bolts and Heavy Hex Nuts
COUPLING RNG EXTENDED 10IN DUCTILE IRON
For use with SDR 35, standard steel, ductile iron, cast iron, AC pipe
Romac Industries
207-12151215800
72 lb
ASTM A 536 Grade 65-45-12 End Ring|ASTM D2000 MBA 810 Gasket|AWWA C111 Bolt and Nut
2 Years
Ductile Iron Fittings
