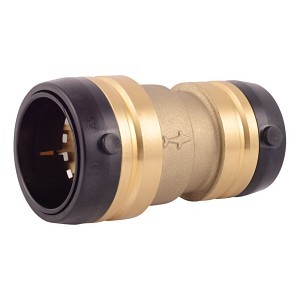

Reducer Coupling, 1-1/2 x 1-1/4 in, Push, Brass
PartSHBR112114
MFGUXL014135
Description
Sharkbite® Reducing Coupling, Fitting/Connector Type: Reducing Coupling, 1-1/2 x 1-1/4 in Nominal, Push-to-Connect, 200 psi, 200 deg F, DZR Brass, Natural Brass/Polished Chrome, Domestic
Price/Availability Accessible On Login
- Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe
- Approved to be used underground and behind walls without access panels
- No special tools, crimping, glue or soldering is needed
- Can be installed in wet lines
- Large diameter fittings (1-1/4 to 2 in) require a stiffener (sold separately) when connecting to PEX pipe
- Remove using a disconnect clip or disconnect tongs (both sold separately)
Used to connect two different sizes of pipe. Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe.
| Fitting/Connector Type | Reducer Coupling |
| Nominal Size | 1-1/2 x 1-1/4 in |
| End Style | Push |
| Material | Brass |
| Domestic/Import | Domestic |
| Finish | Natural Brass/Polished Chrome |
| Pressure Rating | 200 psi |
| Temperature Rating | 200 deg F |
| Brand | Sharkbite® |
| Package Width | 2.4015 in |
| Package Height | 10.4999 in |
| UNSPSC | 40172601 |
| Package Length | 10.9999 in |
| Country of Origin | US |
| Manufacturer | Reliance Worldwide Corporation |
| UPC | 697285040649 |
| Manufacturer Part Number | UXL014135 |
25 years
ASSE 1061|ASTM E119|ASTM E84|CAN/CSA B125.3|cUPC Listed|IPC Listed|NSF/ANSI 372|NSF/ANSI/CAN 61|UL 263|ULC S101|ULC S102.2|UPC Listed|PROP65: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm - www.P65Warnings.ca.gov
For underground and behind the wall applications
