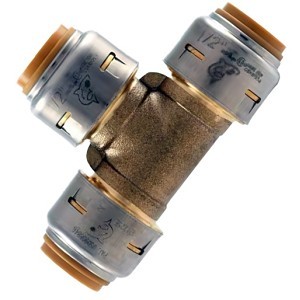

Max™ Tee, 1/2 in, Push, Brass
PartSHBT12
MFGUR362A
Description
Sharkbite® UR362A Max™ Tee, 1/2 in, Push, Brass
Price/Availability Accessible On Login
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
- Half the insertion effort, double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
| Fitting/Connector Type | Tee |
| Nominal Size | 1/2 in |
| End Style | Push |
| Material | Brass |
| Series | Max™ |
| Dimensions | 1.9 in H x 1 in W x 2.9 in L |
| Pressure Rating | 250 psi |
| Temperature Rating | 200 deg F |
| Brand | Sharkbite® |
| Package Width | 1 in |
| Package Height | 1.83 in |
| Package Length | 2.89 in |
| Manufacturer | Reliance Worldwide Corporation |
| UPC | 697285059634 |
| Manufacturer Part Number | UR362A |
25 Years
ASSE 1061 | CSA B125.3 | NSF/ANSI 14 | NSF/ANSI/CAN 61 | NSF/ANSI/CAN 372 | ASTM E84 | ASTM E84CAN/ULC S102.2 | UL 263 | ASTM E119 | CAN/ULC S101
Residential and commercial potable water, recirculation, reclaimed water systems, hydronic heating/cooling (up to 50% glycol concentration) and direct burial
