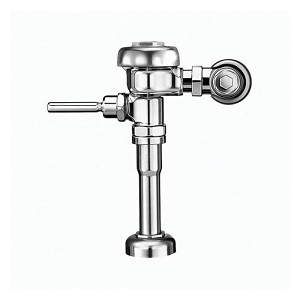

Manual Urinal Flush Valve, ADA, 1 gpf, Polished Chrome
PartSLN1801XLREGAL
MFG3082475
Description
Sloan® Regal® Manual Exposed Flushometer, Single-Flush, Series: 180, Urinal Fixture, 1 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Price/Availability Accessible On Login
- Flush volumes start as low as 0.5 gpf/1.9 lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
- Exposed urinal flushometer, for 1-1/4 in top spud urinals
Exposed Urinal Flushometer, for 1-1/4 in top spud urinals.
| Fixture Type | Urinal |
| Type | Manual |
| Color Family | Chrome |
| Flush Rate | 1 gpf |
| ADA Compliance (Yes/No) | Yes |
| Finish/Color | Polished Chrome |
| Connection Location | Top Spud |
| Domestic/Import | Domestic |
| Handle Type | Non-Hold Open Oscillating |
| Inlet Size | 1 in |
| Material | Semi-Red Brass |
| Pressure Rating | 80 psi |
| Rough-In Size | 11-1/2 in |
| Series | 180 |
| Spud Coupling | 1-1/2 in |
| Valve Design | Diaphragm |
| Brand | Sloan® |
| Package Width | 9.125 in |
| Package Height | 4.375 in |
| UNSPSC | 40141640 |
| Alternate Part Number 1 | 180-1 |
| Package Length | 9.75 in |
| Country of Origin | US |
| Manufacturer | Sloan Valve Company |
| UPC | 671254123489 |
| Manufacturer Part Number | 3082475 |
ADA Compliant|BAA Compliant|cUPC Listed|Valve Shall be in Compliance with the Applicable Sections of ASSE 1037
