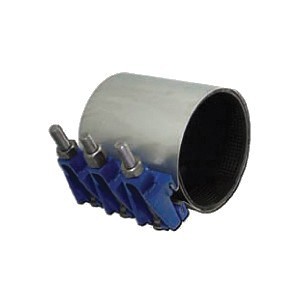

Full Circle® Single Band Repair Clamp With Nuts and Bolts, 2 in Pipe, 24 ga THK, 304/304L Stainless Steel, Epoxy

SMB22600023807000 MFG #: 226-00023807-000
Smith-Blair Full Circle® Repair Clamp, Single Band, Series: 226, 2 in Pipe, 2.35 to 2.63 in Outside Dia, 24 ga Thickness, 304 Stainless Steel, Epoxy, 7-1/2 in W, -20 to 180 deg F
  • Application
  • Brand
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Standards / Approvals
  • Web
  • Package Weight
Works on Cast Iron, Ductile Iron, Steel, Asbestos Cement, Copper, Aluminum, PVC, HDPE, Fiberglass and Other Pipe Types, Joining Pipes of the Same Diameter
Smith-Blair
CLAMP RPR 2 IN 24 GA 304 SS EPY SNGL BND
Clamps provide fast, economical means for repairing full circumferential breaks, holes, cracks and other types of damage|Removable lugs to allow installation in tight spaces|May be used to join plain end pipe of the same diameter|360 deg gasket seal|Flexi-Coat® epoxy finish for corrosion resistance|Range up to 0.4 in single band|Drop-in bolts for easier installation|Ductile iron lug|Nitrile (Buna-N) gasket compounded to produce superior storage and performance characteristics, while resisting water, acids, alkalis, most (aliphatic) hydrocarbons and many other chemicals|Stainless steel recessed flush bridge plate and bonded into gasket|High strength, low alloy steel with heavy bolts, semi-finished hexagon nuts|Up to 300 psi working pressure|Low alloy bolts and nuts|1-1/16 in socket|5/8 x 6 in and 5/8 x 6-7/8 in starter bolts
Xylem
226-00023807-000
ASTM A536, 80-55-06 Lug, ASTM D2000 Gasket, ASTM A240 Bridge Plate/Band, AWWA C111/A21.11 Bolts and Nuts, AWWA C230, NSF/ANSI 61, NSF/ANSI 372, UL Listed
Repair Clamps & Couplings
9 lb
