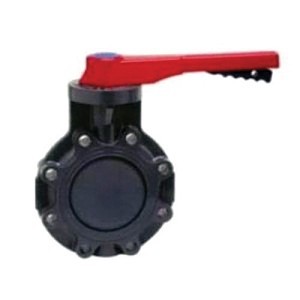

Wafer Style Butterfly Valve, Lever Handle, 6 in, Flange, PVC

SPS722311060 MFG #: 722311-060
Spears® Butterfly Valve, 6 in Nominal, Flanged, 150 lb, 140 deg F, Lever Handle Actuator, 2-3/4 in Inlet to Outlet Length, 10-7/8 in Top to Inlet Center, PVC Body, 316L Stainless Steel (Stem) Stem & Pin Material, EPDM, Gray, 11-1/16 in Dia x 16-13/32 in H, Domestic
  • Brand
  • Compliance
  • Country of Origin
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Package Weight
  • Standards / Approvals
  • Warranty
  • Web
Spears®
Lead Law Compliant
United States of America
VLV BFLY 6IN FLG PVC EPDM O-RING DOM
Special off-set Disc lifts quickly from seat to reduce wear and reduce operating torque|Patented limited contact seat design provides free travel, eliminates seat creep, extrusion and wear, field replaceable without full valve disassembly|Interlocking body and seat prevents wash-out or blow-out|Fully isolated solid type 316L stainless steel stem|Reversible high impact polypropylene lever handle with 7-Position stops and built-in lockout (Standard handle on 1-1/2 - 8 in valves, not available on 10 in and larger valves)|High efficiency gear operator with cast aluminum housing, polypropylene handwheel and built-In position indicator|Lug insert style valve has factory installed stainless steel 316 or zinc plated steel lug inserts|Standard valve accepts field-installable lug inserts set option|True lug design has factory installed zinc plated or stainless steel 316 lugs and is specially designed for connection to either side of valve|Pressure rated to 150 psi at 73 deg F including dead-end service|Valves with EPDM seals and seats are NSF® certified for potable water use|EPDM O-ring
Spears Manufacturing
722311-060
12.95 lb
ANSI/ASME B16.5 Bolt Pattern
Limited Lifetime
Butterfly Valves
