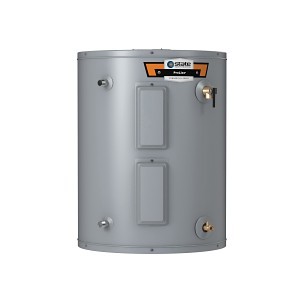

ProLine® Low Boy Side Connect Electric Water Heater, 28 gal, 9 kW, 240 VAC
PartSTAN30E240B
MFG100211122
Description
State Industries Specialty Electric Water Heater, Lowboy, Series: ProLine®, 28 gal Tank, 240 VAC, 9000 W, 1 ph, 1/2 in NPT Water Connection, (2) Copper/Incoloy® Heating Element, 0.9 Energy Factor, Side Mount, 21 gph at 90 deg F Rise Recovery, 150 psi, ASME Yes/No: No, 22 in Dia x 30 in H
Price/Availability Accessible On Login
- Convenient flat porcelain surface at 36 in H, providing extra counter space wherever installed, all plumbing and electrical connections are made through the back of the water heater, this heater is equipped with a PEX cross-linked polymer dip tube
- Designed for low-demand, such as office lavatories or buildings with remote restrooms
- Blue Diamond® glass coating - Provides superior corrosion resistance compared to industry standard glass lining
- Our standard residential water heaters have a solid brass, tamper-resistant, enhanced flow, ball type, drain valve
- Certified at 300 psi test pressure and 150 psi working pressure
- Listed according to UL 174 standards governing storage tank-type electric water heaters
- 1 ph 60 Hz 2 wire water heater
| Tank Capacity Range | 28 to 30 gal |
| Power Rating | 9 kW |
| Voltage Rating | 240 VAC |
| Warranty Years | 6 |
| Type | Low Boy Side Connect |
| Series | ProLine® |
| Tank Capacity | 28 gal |
| ASME Yes/No | No |
| Dimensions | 22 in Dia x 30 in H |
| Energy Factor | 0.9 |
| Heating Element | (2) Copper/Incoloy® |
| Mounting Type | Side |
| Phase | 1 ph |
| Pressure Rating | 150 psi |
| Recovery Rate | 21 gph at 90 deg F Rise |
| Water Connection | 1/2 in FNPT |
| Brand | State Industries |
| Package Width | 23 in |
| Package Height | 34.56 in |
| UNSPSC | 40101825 |
| Alternate Part Number 1 | EN630DOMBSE45 |
| Package Length | 26 in |
| Manufacturer | A. O. Smith |
| UPC | 091196054786 |
| Manufacturer Part Number | 100211122 |
6 Years Limited
ASHRAE/IES 90.1|CSA Certified|UBC|CEC and HUD National Code|UL 174 Certified
Commercial and Residential
