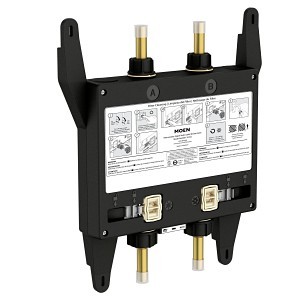

U by Digital Shower Valve, 1/2 in, C Inlet x 1/2 in, C Outlet, 9 gpm
PartSTMS3102
MFGS3102
Description
Moen® Digital Shower Valve, Series: U by Moen®, 1/2 in C Inlet Connection, 1/2 in C Outlet, 120 deg F, 9 gpm, For Use With: Model TS3302TB Digital Shower Controller, Wall Mount, 13.75 in W x 1.81 in D x 15.75 in H, Import
Price/Availability Accessible On Login
- The Smart Shower two-outlet valve allows you to connect 2 shower fixtures - such as a showerhead and handshower
- For full functionality and to enable voice control, wireless internet, a smartphone, and Amazon, Apple, or Google smart devices are required
- Valve must be installed in an area that has an access panel
- GFCI electrical outlet with continuous power (120V/60Hz) is required
- Compact 13-3/4 in x 15-3/4 in dimensions allow the valve to be installed between standard studs or in a cabinet or vanity
- Easy-to-access filter screens blocks debris from getting in and are easily cleaned when necessary
- Optional Moen Battery Backup Kit (Moen item number 179573) is available to allow the shower to continue to work if power is lost
Introducing the Shower of Your Future. With Moen's customizable shower technology and smartphone integration, you control it all: time, temperature and how your day begins. Use your smartphone to set your shower to the perfect wake-up temperature and your evening shower to the perfect wind-down retreat. Warm up the shower to your desired settings and pause it until you are ready to get in. The app and controller tells you when your shower is ready according to your personalized preferences. Available in either a two or four outlet system to meet any bathroom design.
| Nominal Size | 1/2 in |
| End Style | C |
| Connection Size | 1/2 in |
| Connection Type | C |
| Dimensions | 13.75 in W x 1.81 in D x 15.75 in H |
| Domestic/Import | Import |
| Flow Rate | 9 gpm |
| Inlet Connection | 1/2 in C |
| Mounting Type | Wall |
| Outlet Connection | 1/2 in C |
| Series | U by Moen® |
| Suitable For Use With | Model TS3302TB Digital Shower Controller |
| Temperature Rating | 120 deg F |
| Brand | Moen® |
| Package Width | 17.25 in |
| Package Height | 2.813 in |
| UNSPSC | 30181500 |
| Package Length | 17.25 in |
| Country of Origin | CH |
| Manufacturer | Moen |
| UPC | 026508269916 |
| Manufacturer Part Number | S3102 |
30 ft Data Cable
5 Years Limited
ASSE 1016/ASME A112.1016|ASME A112.18.1|CSA B125.16/B125.1/C22.2|IAPMO Listed|UL 1951
