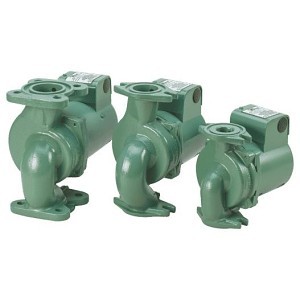

2400 Recirculation Pump, 1/2 hp, 120 VAC, 1 ph, Stainless Steel
PartTAC240050S
MFG2400-50S-3P
Description
Taco®, 2400-50S-3P, Close Coupled Circulator Pump, Stainless Steel, Series: 2400, 3/4, 1-1/2 in Inlet, 3/4, 1-1/2 in Outlet, 1/2 hp Power, 115 V, 4.9 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3450 rpm Motor, Glass-Filled Noryl® Impeller, Flange Mounting, 40 to 225 deg F, Open Drip-Proof Enclosure, Lubricated Ball Bearing, 6-3/8 in H x 4-5/8 in W x 8-3/4 in D Dimensions, Domestic
Price/Availability Accessible On Login
- Universal flange to flange dimensions Ideal for retrofits
- Carbon/Silicon-Carbide mechanical seal for long life
- Compact, space saving design
- Dual electrical knock-outs
- Anti-Condensate design for chilled water
- Rugged 1/2 in Stainless Steel Shaft
- Permanently lubricated, sealed for life bearings
- Superior efficiency, high starting torque
- Powerful close-coupled, maintenance free motor
- Dual pressure taps, suction/discharge
The compact 2400 Series High Capacity Circulators are designed for quiet, efficient, maintenance-free operation in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.
| Power Rating | 1/2 hp |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Material | Stainless Steel |
| Series | 2400 |
| Amperage Rating | 4.9 A |
| Bearing Type | Lubricated Ball Bearing |
| Dimensions | 6-3/8 in H x 4-5/8 in W x 8-3/4 in D |
| Domestic/Import | Domestic |
| Enclosure Type | Open Drip-Proof |
| Frequency Rating | 60 Hz |
| Horsepower | 1/2 hp |
| Impeller Type | Glass-Filled Noryl® |
| Inlet Size | 3/4, 1-1/2 in |
| Maximum Pressure | 150 psi |
| Motor Speed | 3450 rpm |
| Mounting Type | Flange |
| Outlet Size | 3/4, 1-1/2 in |
| Temperature Rating | 40 to 225 deg F |
| Type | Stainless Steel |
| Brand | Taco® |
| UNSPSC | 40151504 |
| Country of Origin | US |
| Manufacturer | Taco |
| UPC | 687752084740 |
| Manufacturer Part Number | 2400-50S-3P |
Flange Gaskets
3 Years
UL-CUS
For Heating
