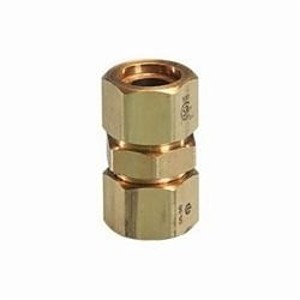

AutoFlare® Gas Coupling, 1-1/4 in, Comp, Brass
PartTRAC114
MFGFGP-CPLG-1250
Description
TracPipe® Counterstrike® AutoFlare® Coupling, Straight, 1-1/4 in Nominal, AutoFlare x TracPipe® PS-II/CounterStrike® End Style, 2-7/8 in Length, Brass, Yellow, Domestic
Price/Availability Accessible On Login
Documentation
- Yellow brass nut, adapter and split rings
- Coupling fitting for use between like sizes of TracPipe® or CounterStrike® tubing
- Stainless steel insert and 1 in split rings
- CSA international evaluation report - 125 psig max operating pressure, 3/8 in through 1-1/4 in
- 2-1/8 in dia across flats
AutoFlare® is the self-piloting fitting that attaches TracPipe® CounterStrike® to traditional gas fittings and appliances. No special tools or additional parts required.
| Fitting/Connector Type | Coupling |
| Nominal Size | 1-1/4 in |
| End Style | Comp |
| Material | Brass |
| Series | AutoFlare® |
| Color | Yellow |
| Domestic/Import | Domestic |
| Length | 2-7/8 in |
| Brand | TracPipe® Counterstrike® |
| UNSPSC | 40172601 |
| Country of Origin | US |
| Manufacturer | Omega Flex |
| Manufacturer Part Number | FGP-CPLG-1250 |
1 Year Limited
ANSI LC1/CSA 6.26|ANSI Z223.1|CAN/CSA B149.1|IAPMO (UPC) File No. 3682/ES ER-0227|ICC PMG 1046/1058|ICC Codes (IFGC/IRC/IMC/IPC)|NFPA 54|NFPA 58|UPC Listed
For indoor, outdoor and concealed locations
Price/Availability Accessible On Login
Documentation
TracPipe® Counterstrike®AutoFlare® Gas Coupling, 1-1/4 in, Comp, Brass
