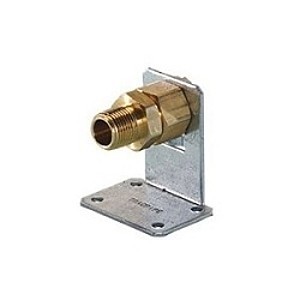

Key Valve Bracket, 3/4 x 1/2 in, TracPipe® PS-II/CounterStrike® Domestic

TRAKVB3412 MFG #: FGP-KVB750-500
TracPipe® Counterstrike® Reducing Key Valve Bracket, 3/4 x 1/2 in Nominal Size, TracPipe® PS-II/CounterStrike®, Domestic
  • Application
  • Brand
  • Country of Origin
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Package Weight
  • Standards / Approvals
  • Web
For TracPipe® and CounterStrike® Fittings
TracPipe® Counterstrike®
United States of America
BRACKET V KEY REDUCING 3/4 X 1/2 IN DOM
Use for but not limited to rigid mount of fireplace key valve for TracPipe® and CounterStrike®, may be used indoor, outdoor and in concealed location|Nut, adapter and split rings yellow brass material|Stainless steel insert|Galvanized steel bracket|25 psig operating|125 psig max operating|-20 to 200 deg F operating|1-3/8 in dia across flats|Must be installed in accordance with the TracPipe® design guide and installation instructions and all applicable codes
Omega Flex
FGP-KVB750-500
0.77 lb
ANSI LC1/CSA 6.26|ANSI Z223.1|CAN/CSA B149.1|IAPMO (UPC) File No. 3682/ES ER-0227|ICC PMG 1046/1058|ICC Codes (IFGC/IRC/IMC/IPC)|NFPA 54|NFPA 58
Gas Fittings
