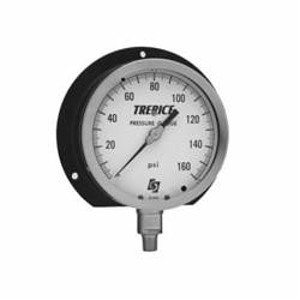

Pressure Gauge, 4-1/2 in Dial, 0 to 100 psi, 1/4 in MNPT Bottom Connection
PartTRE500XB4502LA100
MFG500XB4502LA100
Description
Trerice Industrial Pressure Gauge, Series: 500X, 0 to 100 psi, 1/4 in MNPT, 4-1/2 in Dial Diameter, +/- 0.5 % Accuracy, 250 deg F, Lower Mount, Cast Aluminum Case, Black, 5.88 in Dia x 2.06 in D
Price/Availability Accessible On Login
- Bronze tube, brass socket
- Stainless steel movement
- Clear glass window
- Cast aluminum, black finished, surface mounted back flanged case
- Aluminum/white background with black graduations and markings dial face
- 304 stainless steel ring
The Trerice 500X Series Industrial Gauge is designed to withstand the most demanding applications of a variety of industries. This pressure gauge has a back flanged, cast aluminum case and stainless steel ring. Wetted parts are either bronze tube with Lead-Free (PBF) brass socket or stainless steel tube and socket.
| Type | Pressure |
| Fill Type | Dry |
| Connection Size | 1/4 in |
| Mounting Type | MNPT Bottom |
| Pressure Range | 0 to 100 psi |
| Dial Diameter | 4-1/2 in |
| Accuracy | +/-0.5% |
| Color | Black |
| Dimensions | 5.88 in Dia x 2.06 in D |
| Domestic/Import | Buy American |
| Material | Cast Aluminum |
| Series | 500X |
| Temperature Rating | 250 deg F |
| Brand | Trerice |
| UNSPSC | 41112412 |
| Manufacturer | H.O. Trerice |
| UPC | 842615106131 |
| Manufacturer Part Number | 500XB4502LA100 |
1 Year
ASME B40.100 Grade 1A|cULus Water Quality MH59892|CNR Registered|NSF/ANSI 372/61
For broad spectrum of industrial needs
Price/Availability Accessible On Login
TrericePressure Gauge, 4-1/2 in Dial, 0 to 100 psi, 1/4 in MNPT Bottom Connection
