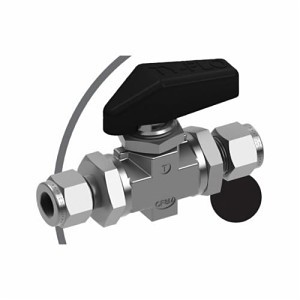

1-Piece Ball Valve, 1/2 in, Comp, Standard Port, Stainless Steel Ball, 316/316L Stainless Steel
PartTYS6DTT88K
MFGSS-6-D-TT-8-8-K
Description
Tylok® Ty-Flo® Ball Valve, Series: HP Series, 1/2 in Nominal, CBC-Lok® Tube, 5000 psi, -15 to 300 deg F, 1/4 in Orifice, Handle Actuator, 1.69 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem/PCTFE Trim, FKM
Price/Availability Accessible On Login
Documentation
- Reliable, simple operation for on-off service
- Fast acting, one quarter-turn fully opens or closes the valve
- Maximum performance, straight through flow for minimum turbulence and pressure drop
- Positive leak tight shut-off, even with fluctuating pressures
- Panel mounting capabilities standard
- Bi-directional flow
- Micro finished ball provides positive seal
- Free floating ball design compensates for seat wear
- CBC-Lok® double ferrule tube ends are completely interchangeable with Swagelok® and Parker A-Lok® tube ends
- FKM stem O-ring
- 316 stainless steel stem/PCTFE seat
Ty-Flo® HP Series Ball Valves are ordered as listed in this catalog by inserting the material code before the part number. Ty-Flo® HP Series Ball Valves can be identified through the part number as to material, valve series, style, valve configurations, port size, and seat material.
| Nominal Size | 1/2 in |
| End Style | Comp |
| Port Type | Standard |
| Construction | 1-Piece |
| Material | 316/316L Stainless Steel |
| Ball Material | Stainless Steel |
| Actuation Type | Handle |
| Actuator Type | Handle |
| Body Material | 316 Stainless Steel |
| Orifice Size | 1/4 in |
| Pressure Rating | 5000 psi |
| Series | HP |
| Softgoods Material | FKM Stem O-Ring |
| Temperature Rating | -15 to 300 deg F |
| Top to Inlet Center | 1.69 in |
| Trim Material | 316 Stainless Steel Stem/PCTFE Seat |
| Brand | Tylok® |
| UNSPSC | 40141607 |
| Country of Origin | US |
| Manufacturer | Tylok International |
| UPC | 811731025633 |
| Manufacturer Part Number | SS-6-D-TT-8-8-K |
1 year Limited
ASME B16.34 Compliant
