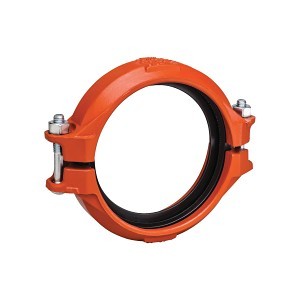

356 Transition Coupling, 2-1/2 in, Groove, Ductile Iron, Enamel Painted, EPDM Gasket
PartVCGTC212
MFGL024356PE0
Description
Victaulic® Installation-Ready™ PGS™-300 Transition Coupling, Series: 356, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, 2.35 in Thickness, 6.23 in Length, Ductile Iron, Orange Enamel, 4.05 in H
Price/Availability Accessible On Login
- Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic PGS-300 groove profile
- Sizes from 2 – 12″/DN50 – DN300
- Refer to the submittal for maximum pressure ratings and temperature reduction factors
| Series | 356 |
| Type | Transition |
| Nominal Size | 2-1/2 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Potable/Non-Potable | Non-Potable |
| Gasket Material | EPDM |
| Color | Orange |
| Dimensions | 4.05 in H |
| Fitting/Connector Type | Coupling |
| Length | 6.23 in |
| Thickness | 2.35 in |
| Brand | Victaulic® |
| UNSPSC | 40172604 |
| Manufacturer | Victaulic |
| UPC | 883481699495 |
| Manufacturer Part Number | L024356PE0 |
1 Year
cULus Listed|Ductile Iron Conforming to ASTM A536|Grade 65-45-12|IAPMO R&T Listed|ICC Compliance|cUPC Listed
CPVC Pipe
Price/Availability Accessible On Login
Victaulic®356 Transition Coupling, 2-1/2 in, Groove, Ductile Iron, Enamel Painted, EPDM Gasket
