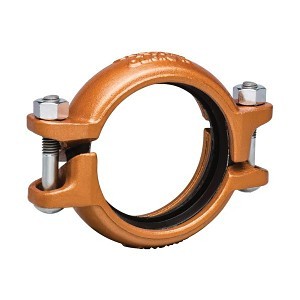

607 Rigid Coupling, 2-1/2 in, Groove, Ductile Iron, Copper, EPDM Gasket
PartVFCQC212
MFGL024607PP0
Description
Victaulic® QuickVic™ Installation-Ready™ Rigid Coupling, Series: 607, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, Grooved End Style, Up to 300 psi Pressure, Ductile Iron, Copper, 0 to 180 deg F, 2-5/8 in OD, Domestic
Price/Availability Accessible On Login
- For use on types K, L, M and DWV copper tubing
- Provides a rigid pipe joint designed to restrict axial or angular movement
- Operating temperature dependent on gasket selection
| Series | 607 |
| Type | Rigid |
| Nominal Size | 2-1/2 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Copper |
| Potable/Non-Potable | Non-Potable |
| Gasket Material | EPDM |
| Dimensions | 2-5/8 in OD |
| Domestic/Import | Domestic |
| Fitting/Connector Type | Coupling |
| Pressure Rating | Up to 300 psi |
| Temperature Rating | 0 to 180 deg F |
| Brand | Victaulic® |
| Country of Origin | US |
| Manufacturer | Victaulic |
| UPC | 883481909877 |
| Manufacturer Part Number | L024607PP0 |
(2) Carbon Steel Oval Neck Track Bolts, (2) Carbon Steel Hex Nuts and Fluoroelastomer Blend Gasket
1 year Limited
ANSI/NSF 61/372|ASTM A449/A563 Grade B/A536 Grade 65-45-12|cULus Listed|Fire Protection Approved|UL 213/467|UPC Listed|PROP65: The external painted surfaces of these products can expose you to trace amounts of chemicals, including BBP, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
