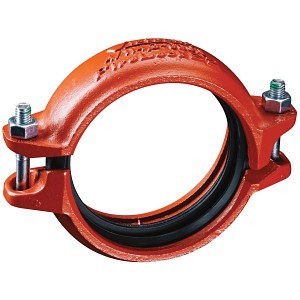

Rigid Coupling, 8 in, Groove, Ductile Iron, Enamel Painted
PartVFFEZC8
MFGL08009NPE2
Description
Victaulic® FireLock™ Rigid Coupling, Series: 009N, Fitting/Connector Type: Coupling, 8 in Nominal, Grooved, 2-1/2 in Thickness, 13.13 in Length, 365 psi, Ductile Iron, Orange Painted, Orange, -30 to 250 deg F, 8-5/8 in OD
Price/Availability Accessible On Login
- Angled bolt pad provides rigidity
- Grade "E" EPDM (type A) Vic-Plus™ pre-lubricated gasket
| Fitting/Connector Type | Coupling |
| Type | Rigid |
| Nominal Size | 8 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Color | Orange |
| Dimensions | 8-5/8 in OD |
| Length | 13.13 in |
| Pressure Rating | 365 psi |
| Series | 009N |
| Temperature Rating | -30 to 250 deg F |
| Thickness | 2-1/2 in |
| Brand | Victaulic® |
| UNSPSC | 40142000 |
| Manufacturer | Victaulic |
| UPC | 883481831147 |
| Manufacturer Part Number | L08009NPE2 |
EPDM Rubber Gasket, Carbon Steel Track Bolts and Hex Nuts
1 Year Limited
ASTM A536 Grade 65-45-12|ASTM A449/A563 Grade B/B633 ZN/FE5 Type III Bolts and Nuts|CE EN 10311 Regulation (EU) No. 305/2011|cULus Listed|FM Approved|LPCB Certified|VDS Certified
For SCH 10, SCH 40/STD or specialty carbon steel pipe
Price/Availability Accessible On Login
