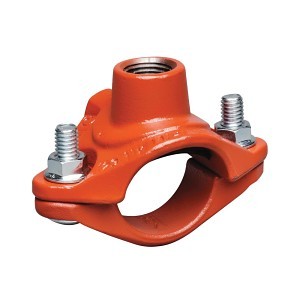

FireLock™ 922 Outlet-Tee, 1-1/2 x 1 in, FNPT Outlet, Ductile Iron, Orange Enamel

VFFLWMT1121 MFG #: CB29922YE0
Victaulic® CB29922YE0 FireLock™ Outlet-Tee, Series: 922, 1 in Nominal, Thread, 300 psi, -40 deg F, 3/8 x 1-3/8 in Bolt, Carbon Steel Bolt, Ductile Iron Clamp, Grade E EPDM Gasket, 4.08 in W x 2.56 in D, Orange Enamel
  • Application
  • Brand
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Standards / Approvals
  • Web
Provides a convenient method of incorporating outlets for directly connecting sprinklers, drop nipples, sprigs, gauges, drains and other outlet products
Victaulic®
1 1/2 X 1 FS GS PTD LW MECH TEE 922 VICTAULIC
Provides a direct branch connection at any location a hole can be cut in a pipe|1-3/16 to 1-1/4 in OD sleeve|With heat-treated plated carbon steel bolt/nut: Trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183|Grade E EPDM violet gasket
Victaulic
CB29922YE0
ASTM A536 Grade 65-45-12 Ductile Iron|ASTM A449 Bolts/Nuts|cULus Listed|CtP Standard|FM Approved|LPCB Approved|VdS Approved
Grooved Fire Fittings
