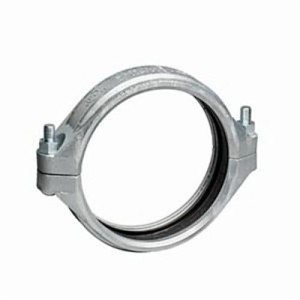

W07 Rigid Coupling, 14 in, Groove, Ductile Iron, Galvanized, EPDM Gasket
PartVFGC14
MFGW140007GE1
Description
Victaulic® AGS™ Pipe Rigid Coupling, Series: W07, Fitting/Connector Type: Coupling, 14 in Nominal, Grooved, 20.63 in Length, 350 psi, Ductile Iron, Hot Dipped Galvanized, 14 in OD x 4-3/4 in W
Notice
Price/Availability Accessible On Login- NON-CANCELLABLE FROM VENDOR, ALL SALES FINAL
- Unique wedge-shaped key profile increases allowable pipe end separation, resulting in easier assembly
- Provide rigidity for valve connections, machinery rooms, and long straight runs
- Style W07 AGS rigid couplings can also be used on abrasive/slurry services in combination with an AGS Vic-Ring
- Flushseal grade E EPDM gasket
- Warning: For one time field test only, the maximum joint working pressure may be increased to 1-1/2 times the figures shown
Style W07 is the first rigid two-piece coupling for 14 in/350mm to 50 in/1250mm piping using Advanced Groove System Technology. Working pressures shown are based on standard wall carbon steel pipe roll grooved in accordance with Victaulic specifications.
| Series | W07 |
| Type | Rigid |
| Nominal Size | 14 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Galvanized |
| Potable/Non-Potable | Non-Potable |
| Gasket Material | EPDM |
| Color | Galvanized |
| Dimensions | 14 in OD x 4-3/4 in W |
| Fitting/Connector Type | Coupling |
| Length | 20.63 in |
| Pressure Rating | 350 psi |
| Brand | Victaulic® |
| UNSPSC | 40172604 |
| Manufacturer | Victaulic |
| UPC | 688304879999 |
| Manufacturer Part Number | W140007GE1 |
Ductile Iron Conforming to ASTM A536|Grade 65-45-12|FM Approved|NSF Approved|UL Listed
Notice
Price/Availability Accessible On Login- NON-CANCELLABLE FROM VENDOR, ALL SALES FINAL
Victaulic®W07 Rigid Coupling, 14 in, Groove, Ductile Iron, Galvanized, EPDM Gasket
