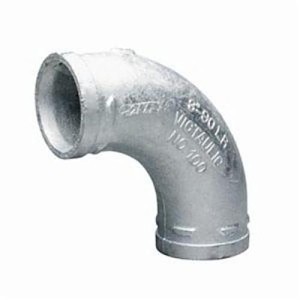

Long Radius 90 deg Elbow, 4 in, Groove, Ductile Iron, Galvanized
PartVFGL94
MFGF040100G00
Description
Victaulic® Pipe Elbow, Long Radius, Series: 100, Fitting/Connector Type: 90 deg Elbow, 4 in Nominal, Grooved, Ductile Iron, Hot Dipped Galvanized, 4-1/2 in OD
Price/Availability Accessible On Login
- Standard fitting pressure ratings conform to ratings of installed coupling
- All fittings supplied with grooves or shoulders for fast installation
- Fittings available from ¾ – 24″
- DN20 – DN600
Groove design for easy alignment and installation. Not intended for use with Victaulic couplings for plain end pipe. Pressure ratings conform to ratings of Style 77 coupling.
| Fitting/Connector Type | 90 deg Elbow |
| Type | Long Radius |
| Nominal Size | 4 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Galvanized |
| Dimensions | 4-1/2 in OD |
| Series | 100 |
| Brand | Victaulic® |
| UNSPSC | 40172804 |
| Manufacturer | Victaulic |
| UPC | 688304057328 |
| Manufacturer Part Number | F040100G00 |
ANSI/NSF 61|Ductile Iron Conforming to ASTM A-536|Grade 65-45-12|FM Approved|VdS Certified
Price/Availability Accessible On Login
Victaulic®Long Radius 90 deg Elbow, 4 in, Groove, Ductile Iron, Galvanized
