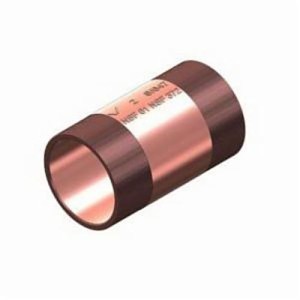

Dielectric, Nipple, 4 in, MNPT, Copper Silicon Alloy Brass
PartVFPDETT4
MFGF040647CTT
Description
Victaulic® Dielectric Transition Fitting, Series: 647-TT, 4 Nominal, Thread, 300, Cast Copper Silicon, 4-1/2 in OD x 6 in L
Price/Availability Accessible On Login
- Sizes from ½ – 4″
- DN15 – DN100
- Pressures up to 300 psi
- 2068 kPa
- 21 bar
- Used to join carbon steel to copper tubing with one fitting
Victaulic style 647 IPS to CTS dielectric transition fittings are typically used to join carbon steel or stainless steel pipe to copper tubing with one fitting. The fittings provide a set distance between the metals being joined while maintaining a minimal electric potential between the fitting and surrounding piping. The style 647-TT (thread x thread) is only available in sizes from 1/2 to 4 in or 15 to 100 mm.
| Fitting/Connector Type | Nipple |
| Type | Dielectric |
| Nominal Size | 4 in |
| End Style | MNPT |
| Material | Copper Silicon Alloy Brass |
| Dimensions | 4-1/2 in OD x 6 in L |
| Pressure Rating | 300 psi |
| Series | 647-TT |
| Brand | Victaulic® |
| UNSPSC | 40170000 |
| Manufacturer | Victaulic |
| UPC | 883481346214 |
| Manufacturer Part Number | F040647CTT |
Copper Silicon Casting Conforming to UNS C87850|UL Listed
Price/Availability Accessible On Login
Victaulic®Dielectric, Nipple, 4 in, MNPT, Copper Silicon Alloy Brass
