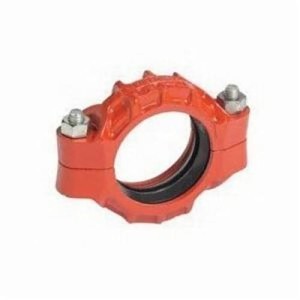

Coupling, 1 in, Groove, Ductile Iron, Enamel Painted
PartVFPFC1
MFGL010077PE0
Description
Victaulic® Coupling, Standard Flexible, Series: 77 Series, Fitting/Connector Type: Coupling, 1 in Nominal, Grooved, 4.12 in Length, 1000 psi, Ductile Iron, Orange Enamel, 1.315 in OD x 1-3/4 in W
Price/Availability Accessible On Login
- This product joins standard roll grooved and cut grooved pipe
- Provides a flexible pipe joint with allows for expansion, contraction and deflection
- Operating temperature dependent upon gasket and/or seal selection
- Exclusively for use with pipe and Victaulic products which feature ends formed with the Victaulic OGS grooved profile (see section 7.0 for reference materials)
- For use with stainless steel pipe, refer to Victaulic submittal for pressure ratings and end loads
- EPDM gasket
- Carbon steel bolts/nuts
Cross-ribbed construction design for higher working pressure. Provides flexibility for expansion, contraction and deflection.
| Fitting/Connector Type | Coupling |
| Nominal Size | 1 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Dimensions | 1.315 in OD x 1-3/4 in W |
| Length | 4.12 in |
| Pressure Rating | 1000 psi |
| Series | 77 |
| Brand | Victaulic® |
| UNSPSC | 40172604 |
| Manufacturer | Victaulic |
| UPC | 688304454554 |
| Manufacturer Part Number | L010077PE0 |
ASTM A536 Grade 65-45-12|cUL/UL Listed|CTP/FM Approved
