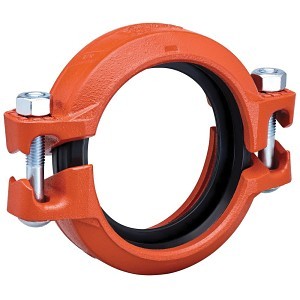

QuickVic™ 107N Rigid Coupling, 12 in, Groove, Ductile Iron, Orange Enamel

VFPQC12 MFG #: L120107PEN
Victaulic® QuickVic™ Rigid Coupling, Pre-Assembled, Series: 107N, Fitting/Connector Type: Coupling, 12 in Nominal, Grooved, 18.97 in Length, 750 psi, Ductile Iron, Orange Enamel, 12-3/4 in OD x 2.71 in W
  • Brand
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Package Weight
  • Standards / Approvals
  • Web
Victaulic®
COUPLING RGD CPLG 12IN GRVD DI 18.97IN
Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa|Joins carbon steel and stainless steel pipe|Provides a rigid pipe joint designed to restrict axial or angular movement|Working pressure dependent on material, wall thickness and size of pipe|Operating temperature dependent on gasket selection from section 3.0|0.2 in allowable pipe end separation, (2) 7/8 X 6-1/2 in bolt/nut, 15.61 in body outside diameter|EPDM gasket|Carbon steel bolts/nuts
Victaulic
L120107PEN
27.7 lb
ASTM A536 Grade 65-45-12, cULus Listed, CTP/FM Approved, LPCB, VDS
Grooved Fittings
