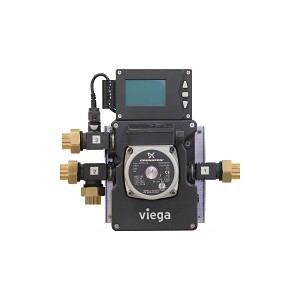

Hydronic Mixing Block, 120 VAC, 2 A, 3/4 in, Solder Connection, 1/25 hp
PartVGA56160
MFG56160
Description
Viega PureFlow® Hydronic Mixing Block, 120 VAC, 2 A, 60 Hz, 203 deg F, 45 psi, 3/4 in Solder, 12.18 in W x 6.7 in D x 10 in H, Import
Price/Availability Accessible On Login
Documentation
- Sensors (2) 10 k ohm - 1 boiler sensor, 1 outdoor sensor and sensor wiring may be extended up to 500 ft Use 18 ga wire when extending
- 24 VAC 1 max A boiler relay/circulator relay
- Customizable with a choice of sealing elements
- 100 psi max test pressure
- Water, propylene or ethylene glycol to 50% concentration fluid
- For supply temperature modulation based on outdoor reset, boiler control, air elimination and fluid circulation
The hydronic mixing block is a mixing device and boiler control, with a built in circulator and system controller. The block can provide either a fixed or reset water temperature via start/stop or constant fluid circulation.
| Series | Hydronic Mixing Block |
| Amperage Rating | 2 A |
| Connection Size | 3/4 in |
| Dimensions | 10 in H x 12.18 in W x 6.7 in D |
| Domestic/Import | Import |
| Enclosure Type | ODP |
| Frequency Rating | 60 Hz |
| Horsepower | 1/25 hp |
| Phase | 1 ph |
| Power Rating | 1/25 hp |
| Pressure Rating | 45 psi |
| Temperature Rating | 203 deg F |
| Voltage Rating | 120 VAC |
| Brand | Viega |
| Package Width | 6.61 in |
| Package Height | 10.04 in |
| UNSPSC | 72151004 |
| Package Length | 5.6 in |
| Country of Origin | CA |
| Manufacturer | Viega |
| UPC | 691514561608 |
| Manufacturer Part Number | 56160 |
CSA Certified C22.2 File No. 24|ETL Control File No. 3068143|UL 873
