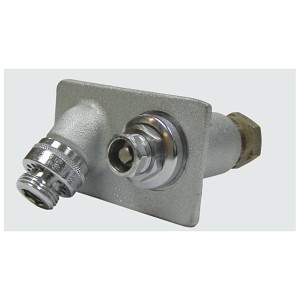

Wall Hydrant, 3/4 in Inlet, C, Polished Chrome
PartWDF84C
MFG84C-CH
Description
Woodford® Close Coupled Wall Hydrant, Anti-Siphon, 3/4 in Nominal, C End Style, 125 psi Pressure, 4-1/2 in Length, 120 deg F, Brass, Polished Chrome, 2-3/4 in H Dimensions
Price/Availability Accessible On Login
Documentation
- Nidel® model 34HF vacuum breaker with 3/4 in male hose thread nozzle
- Permanent type brass valve body with hemispherical seating surface
- No lead solder on all solder joints
- Hardened stainless steel stem resists damage
- EPDM rubber packing with adjustable packing nut
- Loose key operates hydrant
- For non-freezing areas only
- Model 84
The Model 84 is an anti-siphon protected wall hydrant designed for irrigation purposes in mild climate areas or within temperature controlled malls and plazas.
| Type | Wall Hydrant |
| Inlet Size | 3/4 in |
| Inlet Type | C |
| Handle Type | Standard |
| Finish | Polished Chrome |
| ADA Compliance (Yes/No) | No |
| Dimensions | 2-3/4 in H |
| End Style | C |
| Finish/Color | Polished Chrome |
| Length | 4-1/2 in |
| Material | Brass |
| Nominal Size | 3/4 in |
| Pressure Rating | 125 psi |
| Specifications | Anti-Siphon |
| Temperature Rating | 120 deg F |
| Brand | Woodford® |
| UNSPSC | 40141726 |
| Manufacturer | Woodford Manufacturing |
| UPC | 671090032969 |
| Manufacturer Part Number | 84C-CH |
ASSE 1011|CSA Certified|IAPMO® Listed
For malls and plazas
Price/Availability Accessible On Login
Documentation
Woodford®Wall Hydrant, 3/4 in Inlet, C, Polished Chrome
