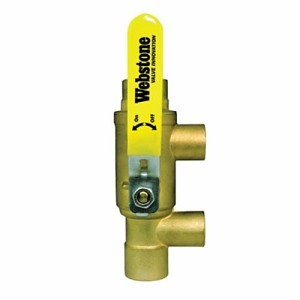

1-Piece Ball Valve With Drain, 1-1/4 in, C, Full Port, Brass Ball, Brass
PartWEBH58654
MFG58654
Description
Webstone Purge Tee™, 58654, Ball Valve, Series: H-x864, 1-1/4 x 1 in Nominal, C Primary Loop x C Secondary Loop End Style, 600 psi CWP Pressure, 250 deg F, Full Port, Media: Glycol Mixture/Oil/Water, Reversible Handle Actuator, 7 in Inlet to Outlet Length, 2.56 in Top to Inlet Center, Forged Brass Body, Bass/PTFE Trim, PTFE Softgoods, Import
Notice
Price/Availability Accessible On Login- The Only Way to Place a Ball Valve Between Two Closely Spaced Tees
- Precision Crafting Achieves Hydraulic Separation
- Saves 36 min
- Replaces 5 Components
- Eliminates 4 Leak Paths
- This valve is actuated by a blowout proof stem
- Pro-Pal Primary/Secondary Loop Purge Tee, Full Port Forged Brass Ball Valve, with Reversible Handle, and Adjustable Packing Gland
Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is specifically designed for power purging individual loops in a hydronic heating system and ensures the critical distance between tees is within tolerance for hydronic separation. Actuated by a blow-out proof stem and features an adjustable packing gland. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.
| Nominal Size | 1-1/4 in |
| End Style | C |
| Port Type | Full |
| Construction | 1-Piece |
| Material | Brass |
| Type | Drain |
| Ball Material | Brass |
| Actuator Type | Reversible Handle |
| Body Material | Brass |
| Color | Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 7 in |
| Media | Gas/Oil/Water |
| Pressure Rating | 600 psi |
| Series | Pro-Pal® 5865 |
| Softgoods Material | PTFE |
| Temperature Rating | 100 deg F |
| Top to Inlet Center | 42409 in |
| Trim Material | Brass Stem and PTFE Seat |
| Brand | Webstone |
| Package Width | 2.9 in |
| Package Height | 3.6 in |
| UNSPSC | 40141607 |
| Alternate Part Number 1 | H-58654 |
| Package Length | 7.4 in |
| Country of Origin | CN |
| Manufacturer | NIBCO Inc. |
| UPC | 018394586543 |
| Manufacturer Part Number | 58654 |
Adjustable Packing Gland
Lifetime
ASME B16.18
Residential, Commercial, Industrial, Primary/Secondary Piping in Mod-Con Boiler Systems Applications
