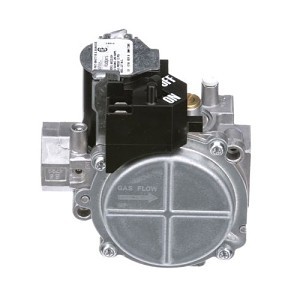

Carrier Direct Replacement Gas Valve, 1/2 x 1/2 in HSI/DSI Ignition, 110 Kbtu/hr Nominal Natural Gas, 24 VAC Coil
PartWRG36J55614
MFG36J55-614
Description
White-Rodgers™ Carrier Replacement Gas Valve, Direct, Series: 36J Series, 1/2 x 1/2 in Nominal, NPT End Style, 1/2 psi Pressure, HSI/DSI Ignition, 110000 Btu/hr Nominal, Natural Gas, 24 V AC Coil, 0.43 A 50/60 Hz Electrical Connections, -40 to175 deg F
Price/Availability Accessible On Login
Documentation
- Designed for hot surface and direct spark ignition systems and features a compact footprint and versatile range
- Slow open, two stage models
- Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
- Tamper-resistant screws and controlled gasket compression to withstand high inlet pressures
| Type | Gas Valve |
| Coil Voltage | 24 V AC |
| Electrical Connections | 0.43 A 50/60 Hz |
| End Style | NPT |
| Gas Type | Natural |
| Ignition Type | HSI/DSI |
| Nominal Capacity | 110000 Btu/hr |
| Nominal Size | 1/2 x 1/2 in |
| Pressure Rating | 1/2 psi |
| Series | 36J |
| Temperature Rating | -40 to175 deg F |
| Brand | White-Rodgers™ |
| UNSPSC | 40141600 |
| Manufacturer | Emerson Electric |
| UPC | 786710536977 |
| Manufacturer Part Number | 36J55-614 |
CE 36J|CSA/cUS Certificate No. 1175379
For common ignition systems (HSI/DSI)
