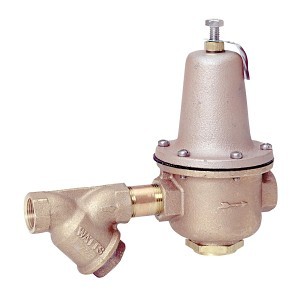

Pressure Reducing Valve, 1 in, FNPT, Brass
PartWTTLF223S1
MFG0298546
Description
WATTS®, 0298546, Pressure Reducing Valve, High Capacity, Series: LF223, 1 in Nominal, FNPT Inlet with Strainer x FNPT Outlet End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 10-15/16 in Inlet to Outlet Length, 6-1/2 in Top to Inlet Center, Brass Body, Buna-N® O-Ring Softgoods
Price/Availability Accessible On Login
- Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
- Serviceable in line
- Sealed spring cage and stainless steel corrosion resistant adjusting cage screws for accessible outdoor or pit installations
- Lead free cast copper silicon alloy body construction
- Enlarged diaphragm, spring cage and seat orifice for high capacity performance
- High temperature resisting diaphragm for hot or cold water
This 1 in high capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free brass body construction, FNPT inlet with strainer by FNPT threaded outlet, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The adjustable reduced pressure range is 25 to 75 psi.
| Nominal Size | 1 in |
| End Style | FNPT |
| Material | Brass |
| Body Material | Brass |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 10-15/16 in |
| Media | Water |
| Pressure Range | 25 to 75 psi |
| Series | LF223 |
| Softgoods Material | Buna-N® O-Ring |
| Temperature Rating | 33 to 160 deg F |
| Top to Inlet Center | 6-1/2 in |
| Type | High Capacity |
| Brand | WATTS® |
| Package Width | 5.88 in |
| Package Height | 13 in |
| UNSPSC | 40141652 |
| Alternate Part Number 1 | LF223-S |
| Package Length | 8.5 in |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268349832 |
| Manufacturer Part Number | 0298546 |
1 Year
ASSE 1003|ANSI A112.26|CSA B356|IAPMO Listed|MIL-V-1814B Type 1|NSF/ANSI 61-G|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Commercial, Institutional and Industrial
