2-Piece Ball Valve, 1/2 in, FNPT, Full Port, Brass Ball, Brass

WTTLFFBV412 MFG #: 0555120

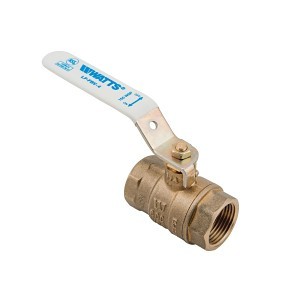

WATTS® Ball Valve, 2-Piece, Series: LFFBV-4, 1/2 in Nominal, FNPT End Style, 600 psi WOG Pressure, -40 to 400 deg F, Full Port, 1/2 in Orifice, Brass Ball, 2 in Inlet to Outlet Length, 1-13/16 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods, Polished Chrome, Import
  • Alternate Part Number 1
  • Application
  • Brand
  • Compliance
  • Country of Origin
  • Invoice Description
  • Item Features
  • Manufacturer
  • Manufacturer Part Number
  • Package Dimensions
  • Package Weight
  • Standards / Approvals
  • Warranty
  • Web
LFFBV-4
Commercial and Residential Applications
WATTS®
Lead Law Compliant
China
VALVE BALL 1/2IN FNPT BRS FULL PTFE BRS
Lead free construction|Full port|Threaded end connections|Metal-to-metal adapter body seal to eliminate adapter leaks after soldering|Fluorocarbon elastomer stem O-Ring prevents stem leaks|Adjustable stem packing gland provides longer service life|Bottom loaded, blow-out proof stem|150 psi steam working pressure|The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight|Chrome plated brass ball
Watts Water Technologies
0555120
H: 1 in x W: 2 in x L: 4.75 in
0.41 lb
cCSAus Certified|NSF/ANSI 61-G
1 Year
Ball Valves
