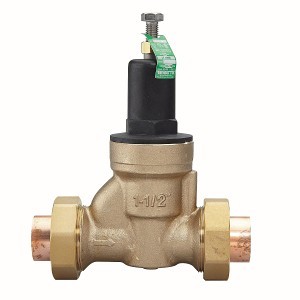

Pressure Reducing Valve, 1-1/2 in, Union C, Bronze
PartWTTLFN45BDUS112
MFG0009800
Description
WATTS®, 0009800, Pressure Reducing Valve, Series: LFN45B, 1-1/2 in Nominal, Double Solder Union Inlet x Solder Union Outlet End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 8-3/16 in Inlet to Outlet Length, 8-7/8 in Top to Inlet Center, Copper Silicon Alloy Body, Thermoplastic Seat/Reinforced EPDM Diaphragm Softgoods
Price/Availability Accessible On Login
- Integral stainless steel strainer removable for cleaning
- Serviceable in line
- Sealed spring cage on all models for accessible outdoor or pit installations
This 1-1/2 in water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy construction, double union solder inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 deg F. Suitable for up to 300 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
| Nominal Size | 1-1/2 in |
| End Style | Union C |
| Material | Bronze |
| Body Material | Cast Copper Silicon Bronze |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 8-3/16 in |
| Media | Water |
| Pressure Range | 25 to 75 psi |
| Series | LFN45B |
| Softgoods Material | Thermoplastic Seat/Reinforced EPDM Diaphragm |
| Temperature Rating | 33 to 180 deg F |
| Top to Inlet Center | 8-7/8 in |
| Brand | WATTS® |
| Package Width | 9.13 in |
| Package Height | 11.88 in |
| UNSPSC | 40141652 |
| Alternate Part Number 1 | LFN45BDU-S |
| Package Length | 5.25 in |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268428605 |
| Manufacturer Part Number | 0009800 |
1 Year
ASSE 1003|ANSI A112.26.2|CSA B356|IAPMO Listed|NSF/ANSI 61-G|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Commercial and Residential
