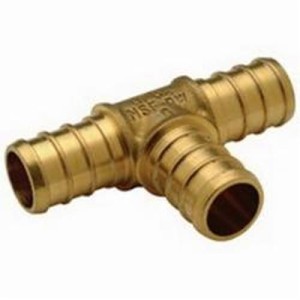

Tee, 3/4 x 1/2 in, Crimp PEX, Brass
PartZRPT3412
MFGQQT443GX
Description
Zurn® ZURN PEX® XL Hose Tee, Fitting/Connector Type: Tee, 3/4 x 3/4 x 1/2 in Nominal Size, PEX Barb, 1.88 in Length, 80 to 160 psi, Brass, 73 to 200 deg F, 1.44 in H
Price/Availability Accessible On Login
- Easy installation
- ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
- ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
Zurn PEX® XL-Low Lead Brass Barb Tee. The QQT_GX is used to branch off the main line or change direction. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn PEX® tube, are pressure rated at 160 psi at 73 deg F, 100 psi at 180 deg F, and 80 psi at 200 deg F. These fittings are listed by NSF as complying with the following standards NSF/ANSI Standard 14, NSF/ANSI Standard 61 including Annex G, ASTM F877, CSA B137.5, and ASTM F1807.
| Fitting/Connector Type | Tee |
| Nominal Size | 3/4 x 1/2 in |
| Material | Brass |
| End Style | Crimp PEX |
| Dimensions | 1.44 in H |
| Height | 0.726 in |
| Length | 1.9715 in |
| Pressure Rating | 160 psi |
| Temperature Rating | 200 deg F |
| Width | 1.411 in |
| Brand | Zurn® |
| UNSPSC | 40183102 |
| Manufacturer | Zurn Water |
| UPC | 084169016553 |
| Manufacturer Part Number | QQT443GX |
ASTM F877/F1807|CSA B137.5|Low Lead Compliant|ANSI/NSF 14|ANSI/NSF 61 Annex G|UNS C69300
Hot and Cold Water PEX Tubing and Plumbing
