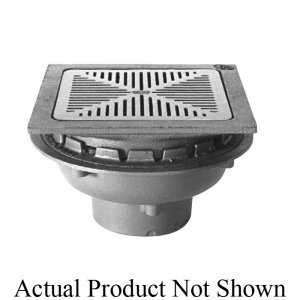

ZN154 Deck Receptor Assembly, 12 in Dia, 3 in Outlet, No Hub
PartZURZN154C3NH
MFGZN154-3NH-C
Description
Zurn® Prom Deck Drain, Square, Series: ZN154-C, 3 in Outlet, No-Hub Connection, Cast Iron Drain, 11 in L x 11 in W x 2 in H Grid, Polished Nickel Bronze Grid, Dura Coated, Blue, 12 in Dia x 7-1/4 in H Dimensions
Price/Availability Accessible On Login
12 in square top prom-deck drain, dura-coated cast iron body with rotatable square promenade frame with seepage slots, frame clamps, underdeck clamp and light duty heel-proof grate.
| Type | Deck Receptor Assembly |
| Diameter | 12 in |
| Outlet Size | 3 in |
| Connection Type | No Hub |
| Deck Plate (Yes/No) | No |
| Series | ZN154 |
| Color | Blue |
| Dimensions | 12 in Dia x 7-1/4 in H |
| Drain Material | Cast Iron |
| Finish | Dura Coated |
| Grid Material | Polished Nickel Bronze |
| Grid Size | 11 in L x 11 in W x 2 in H |
| Brand | Zurn® |
| UNSPSC | 40141700 |
| Manufacturer | Zurn Water |
| UPC | 670240125278 |
| Manufacturer Part Number | ZN154-3NH-C |
Underdeck Clamp, Heel-Proof Grate and Rotatable Light Duty Square Frame
ASTM A 48-83|ANSI A112.21.2M|ASSE Listed|ASPE Listed|IAPMO Listed|UPC Listed
Promenade and Patio Drain
